Home > Products > Door Knob Lock > Tubular Knobset 5 Series (Half-moon Spindle)
  • Tubular Knob 5 Series (Half-moon Spindle) 5764 ET-AB

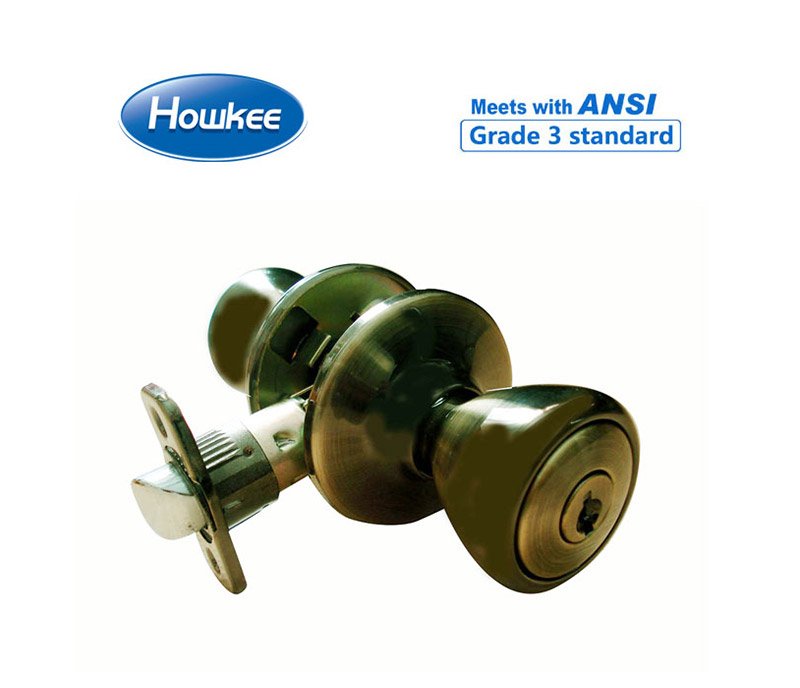

Tubular Knob 5 Series (Half-moon Spindle) 5764 ET-AB

Standard sizes

Tubular Knob 5 Series Half-moon Spindle 5764 ET AB


product description
Material:Brass/SS201/SS304 Knobs & Roses.
Function:Entrance/ Bathroom/Passage/Dummy.
Keyway:Kwikset, 35241,52535,67767,76667,22323 etc. various keycodes available.
Cylinder & Key:5-pin tumbler cylinder, assembled with 2 nickel-plated brass keys.
Keying:KD / KA as usual, construction / master key upon request.
Finish:US3,US4,US5,US10B, US11, US15, US15A, US26,US26D, US32, US32D
Latch:

Adjustable latch w. 2 3/8" & 2 3/4" backset.

Drive-in latch, 4-way latch & 6-way latch available upon request.

Door Thickness:

From 1 3/8" (35mm) to 1 3/4" (45mm).

Can be furnished for doors over 1 3/4" (45mm) when so ordered.

Installation: 2 1/8"(54mm) diameter cross bore, 1" (25mm) diameter edge bore.
Packaging:Paper box as usual, visual packs available upon request.
MQR:1000pcs
