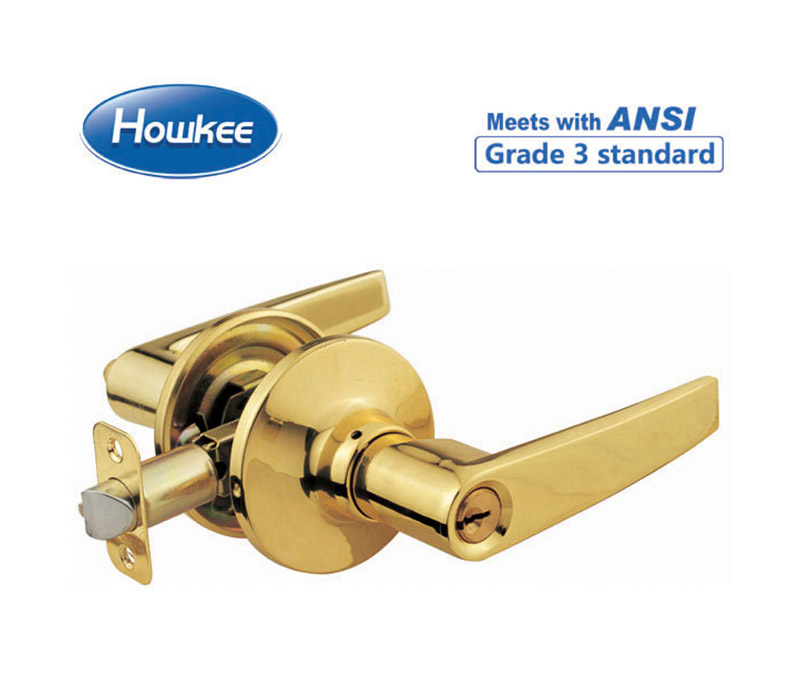

Tubular Lever 8 Series 808 BP ET

Inquire Now Next Product

Standard sizes

product description

Material:	Zinc Alloy Handles, brass/stainless steel roses.
Function:	Entrance/ Bathroom/Passage/Dummy
Keyway:	Schlage, kwikset, yale, weiser keyway available.
Cylinder & Key:	5-pin tumbler cylinder, brass plug w. 2 nickle-plated brass key.
	Removable for rekeying. 6-pin tumbler cylinder available upon request.
Keying:	KD / KA as usual, construction / master key upon request.
Finish:	US3, US4, US5,US10B, US11, US15, US15A, US26,US26D, US32, US32D
Latch:	Adjustable latch w. 2 3/8" & 2 3/4" backset as usual. Drive-in latch, 4-way latch & 6-way latch available upon request.
Door thickness:	From 1 3/8" (35mm) to 1 3/4" (45mm). Can be furnished for doors over 1 3/4" (45mm) when so ordered.
Installation:	2 1/8" (54mm) diameter cross bore, 1" (25mm) diameter edge bore.
Handing:	Non-Handed. LH-left handed (hinges on left, as viewed from the exterior side of the door). RH-right handed (hinges on right, as viewed from the exterior side of the door).
Packaging:	Paper box as usual, visual packs available upon request.
MQR:	1000pcs

Affordable quality Tubular Handle Lock range for any type of door

Tubular Handle Lock can be applied to a large number of buildings, such as hospitals, schools and housing.

Stainless steel finish

Latch, Keyhole, Cylinder or Bathroom W/C

Robust slotted spindle retention

Advanced spring prevents handle sagging

Cheap construction lever handle

Make sure the handle is in the correct position. The handle must be secured to the door with two back-to-back screws and eight self-tapping screws.

Make sure the spindle is centered and the grub screws on both handles are securely tightened.

Make sure the cylinder is centered on the lock before installing the escutcheon.

If the handle and cylinder are not properly aligned, it will hinder the operation of the lock.
