Home > Products > Deadbolts > Residential Deadbolt
  • Residential Deadbolt D101AB (DI LATCH)

Residential Deadbolt D101AB (DI LATCH)

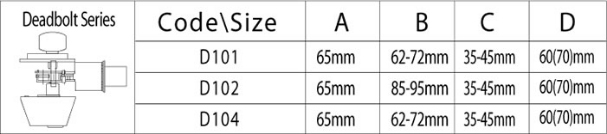

Standard sizes

Residential Deadbolt D101AB DI LATCH

product description
Material:Brass or Stainless Steel.
Function:Each of Entry lock (Tubular or Cylindrical, Knobs or Levers) and Deadbolt (Single or Double cylinder) are available for selection as one combo group
Keyway:Schlage, kwikset, yale, weiser keyway available.
Cylinder:5-pin tumbler cylinder, brass plug w.4 nickel-plated brass keys.
Keying:KA with in a set, KA or KD as usual, construction / master key upon request.
Finish:US3, US4,US5, US10B, US11, US15, US15A, US26,US26D, US32, US32D
Latch:

Adjustable latch w. 2 3/8" & 2 3/4" backset as usual.

Drive-in latch, 4-way latch & 6-way latch available upon request.

Latch Throw:1" throw-out with 2 hardened steel rods for anti-sawing purpose.
Door Thickness:

From 1 3/8" (35mm) to 1 3/4" (45mm).

Can be furnished for doors over 1 3/4" (45mm) when so ordered.

Packaging:Paper box as usual, visual packs available upon request.
MQR:1000pcs
