Home > Products > Door Handle Lock > Heavy Duty Leverset
  • Heavy Duty Lever F9803 AB ET

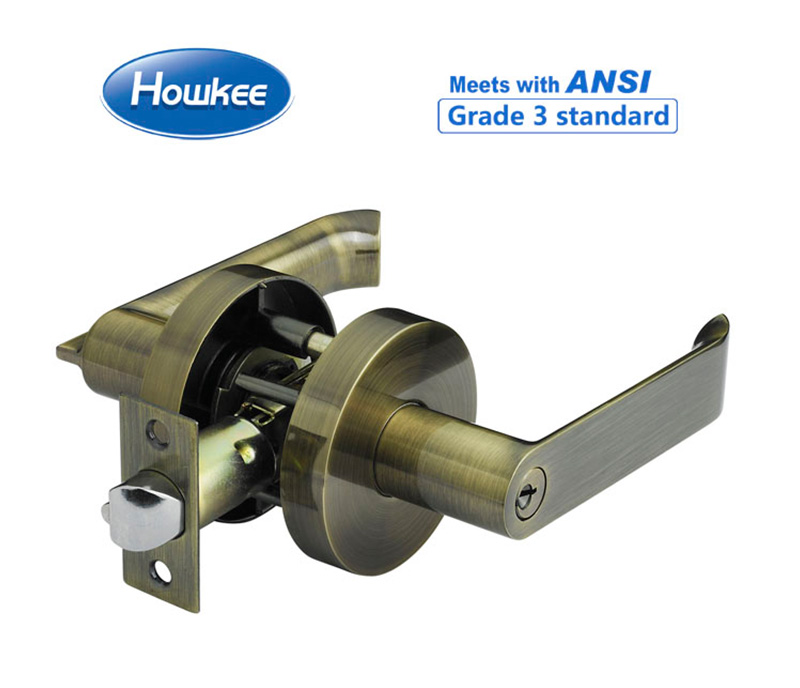

Heavy Duty Lever F9803 AB ET

Standard sizes

Heavy Duty Lever F9803 AB ET

product description
Material:Zinc Alloy Handles, Zin Alloy roses.
Function:Entrance/ Bathroom/Passage/Dummy
Keyway:Schlage, kwikset, yale, weiser keyway available.
Cylinder & Key:

5-pin tumbler cylinder, brass plug w. 2 nickle-plated brass key.

Removable for rekeying.

Keying:KD / KA as usual, construction / master key upon request.
Finish:US3, US4, US5, US10B, US11, US15, US15A, US26,US26D, US32, US32D
Latch:Adjustable latch w. 2 3/8" & 2 3/4" backset as usual.

Drive-in latch, 4-way latch & 6-way latch available upon request.
Door Thickness:from 1 3/8" (35mm) to 1 3/4" (45mm)

Can be furnished for doors over 1 3/4" (45mm) when so ordered.
Installation: 2 1/8" (54mm) diameter cross bore, 1" (25.4mm) diameter edge bore.
Handing:

Non-Handed.

LH-left handed (hinges on left, as viewed from the exterior side of the door).

RH-right handed (hinges on right, as viewed from the exterior side of the door).

Packaging;Paper box as usual, visual packs available upon request.
MQR:1000pcs
